Datafor AI Agent (Preview) relies on vectorized metadata and level values to understand business semantics, improve natural language reasoning, and provide accurate analytical insights. This document explains how to configure embedding models, run Prep Data for AI, set up scheduled vectorization, and inspect stored vector indexes.

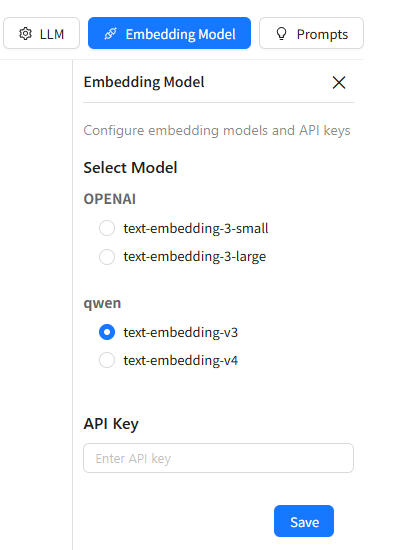

0. Prerequisite: Configure Embedding Model

Before performing any vectorization task—including Prep Data for AI, Vector Schedules, or Vector Indexes—you must configure an embedding model.

Location:AI Agent (Preview) → Embedding Model

Steps

1. Open the Embedding Model configuration panel.
2. Select an embedding provider and model:

OpenAI Models

• text-embedding-3-small
• text-embedding-3-large

Qwen Models

• text-embedding-v3
• text-embedding-v4

3. Enter the corresponding API Key.
4. Click Save.

Why This Matters

• All semantic search, metadata understanding, and vector indexing depend on the embedding model.
• Incorrect or missing configuration may cause:
  • Prep Data for AI to fail
  • Scheduled vectorization to fail
  • Vector indexes to remain empty
• Higher-quality embedding models typically improve the AI Agent’s natural language interpretation accuracy.

1. Prep Data for AI (On-Demand Vector Index Build)

When you update an analysis model and want the AI to recognize the latest business semantics immediately, use Prep Data for AI to build or refresh the vector index on demand.

Entry point: Models → (⋯) action menu on an analysis model → Prep data for AI

What Prep Data for AI does

• Creates (first run) or refreshes (subsequent runs) the vector index for the selected analysis model
• Vectorizes:
  • Model metadata (dimensions, levels, captions/names, business descriptions)
  • Text-based level values (e.g., product names, regions, brands—when applicable)
• Stores embeddings in ChromaDB for semantic retrieval by AI Agent

When to run it

Run Prep Data for AI after you manually change or publish updates such as:

• Dimension / level names (captions)
• Level definitions / hierarchies
• Business descriptions / glossary text
• Text-based level values the AI should understand (new products, regions, brands, customers, etc.)

Tip: This is the fastest “refresh now” option. Scheduling (automation) is configured via Vector Indexes → Set Vector Schedule.

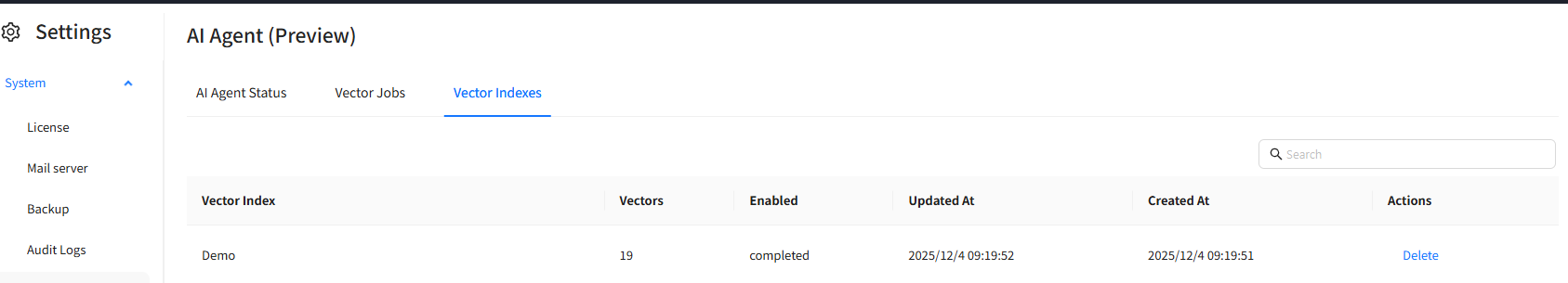

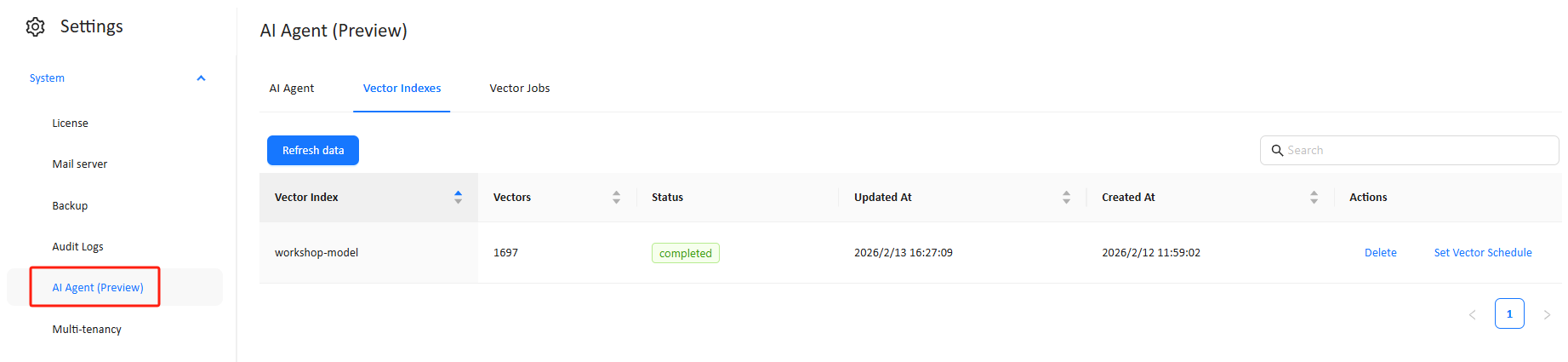

2. Vector Indexes (View & Manage Vector Data + Scheduling)

Location:Settings → AI Agent (Preview) → Vector Indexes

This page lists the vector indexes created by Prep Data for AI and shows their current state and scale.

2.1 Information displayed

• Vector Index name (typically mapped to model ID/name)
• Vectors (number of embeddings stored)
• Status (e.g., completed / failed)
• Updated At timestamp
• Created At timestamp

Refresh data only refreshes the table display—it does not trigger re-vectorization.

2.2 Available actions

Action	Description
Delete	Permanently deletes the vector index
Set Vector Schedule	Creates/updates an automated vectorization schedule for this index

After deletion:

• The analysis model remains usable
• AI semantic understanding may decrease (because vectors are removed)
• You must rerun Prep Data for AI to rebuild vectors

3. Set Vector Schedule (Automated Refresh for an Index)

Scheduling is configured from the vector index, not as a separate “create job” flow.

How to configure: Vector Indexes → Set Vector Schedule

3.1 Schedule configuration

Field	Description
Circulate	Execution frequency: Run once / Daily / Weekly / Monthly / Yearly / Cron
Start time	Time of day the job should run
Date commenced	The effective start date of the schedule
Cron (when selected)	Use a cron expression for advanced timing control

Typical usage

• Daily/Weekly: best for frequently changing master data (products, customers, stores, etc.)
• Run once: schedule a single future refresh (e.g., after a planned ETL load)
• Cron: precise control (e.g., run after upstream pipelines complete)

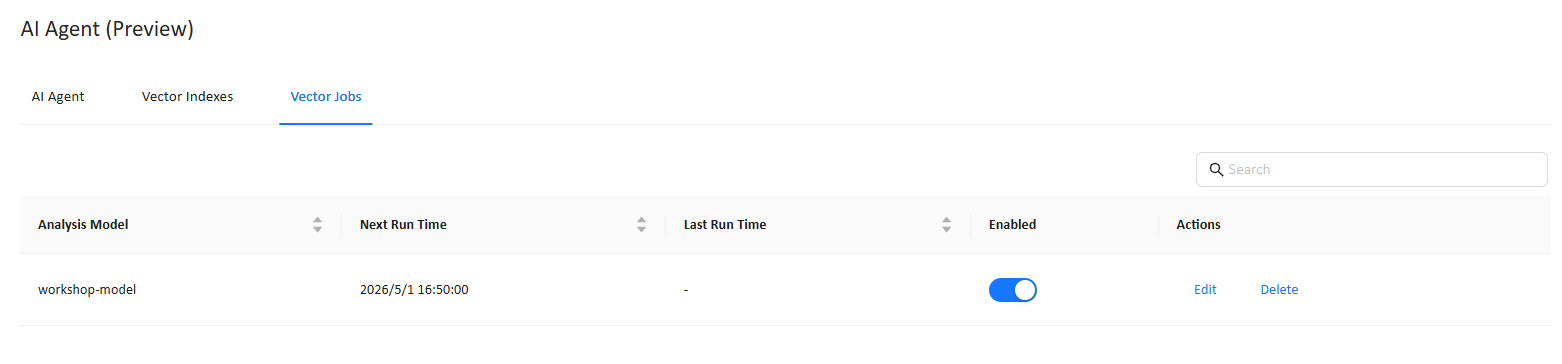

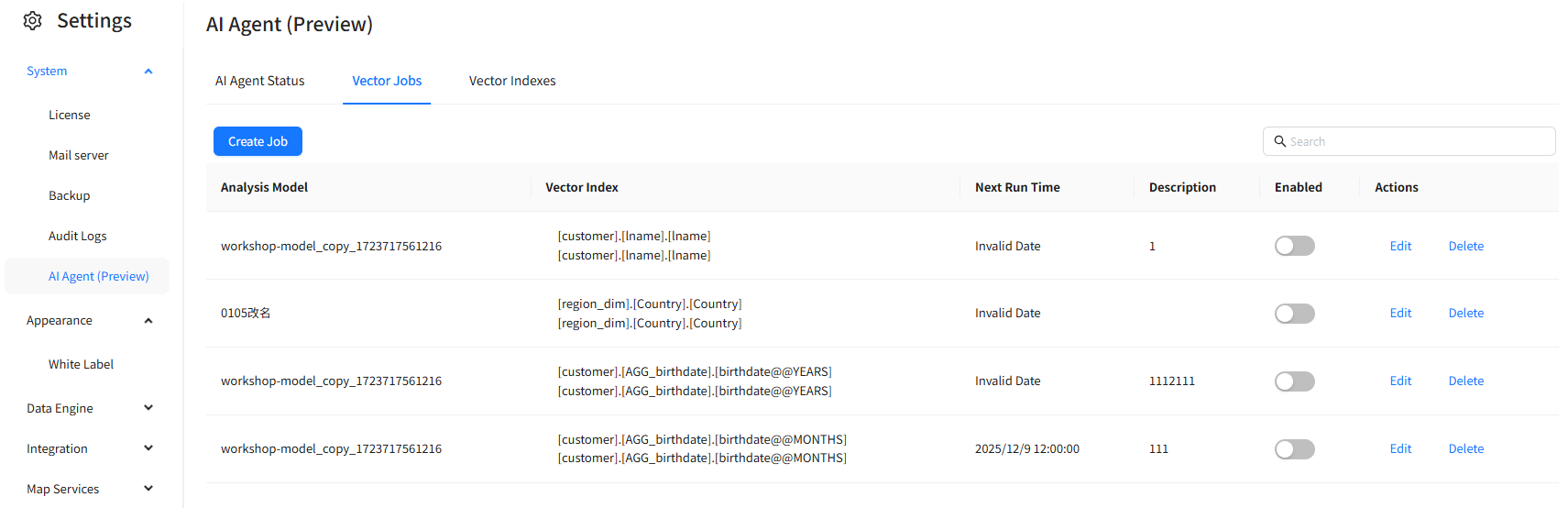

4. Vector Jobs (Monitor Scheduled Runs)

Location:Settings → AI Agent (Preview) → Vector Jobs

This page shows all schedules created via Set Vector Schedule, including runtime information and enablement status.

4.1 Information displayed

• Analysis Model
• Next Run Time
• Last Run Time
• Enabled
• Actions: Edit, Delete

4.2 Job behavior

• Scheduled runs refresh the model’s vector index automatically based on the configured frequency
• You can disable a schedule temporarily without deleting it
• Use Edit to change frequency/time (or cron), and Delete to remove the schedule

5. Technical Notes: ChromaDB Integration

Datafor uses ChromaDB as its vector storage engine to support:

• Semantic similarity search over model metadata and text values
• Faster matching between user questions and business concepts/fields
• Better grounding for AI Agent’s “intent → field” mapping

6. Best Practices

1. Run Prep Data for AI after model/schema changes
   Ensures the AI recognizes updated names, hierarchies, and business descriptions immediately.

2. Use schedules for fast-changing level values
   If products/brands/customers/stores change frequently, configure Daily/Weekly/Cron.

3. Monitor Vector Jobs regularly
   Track Next Run Time / Last Run Time to ensure automation is working.

4. Clean unused vector indexes
   Keep only what you use to reduce storage and operational clutter.

Conclusion

Vectorization is essential for enabling Datafor AI Agent to understand your business semantics. By combining:

• Prep Data for AI (on-demand build/refresh)
• Vector Indexes → Set Vector Schedule (automation)
• Vector Jobs (monitoring and management)

you ensure that the AI Agent delivers accurate, natural, and reliable analytical experiences.
